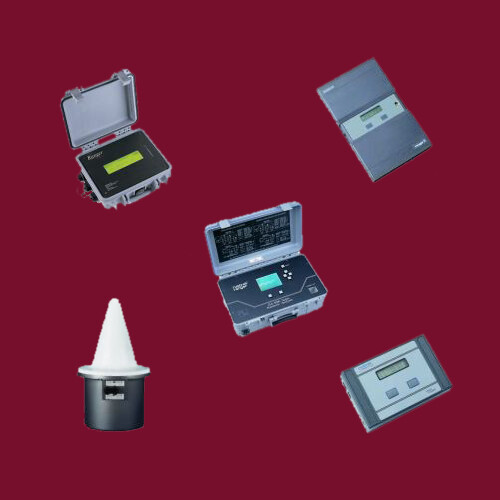

Earlier Products

ORL's Earlier Products

Our line of highly successful data loggers now stretches back over 25 years. You may be familiar with some of the more recent models including the HA5000 Harmonic Analyzer and Ranger3 Data Logger.

However, the product evolution tells only half the story. The Ranger brand has itself had a fascinating life since its inception over 25 years ago. To read the story, click here.

PHALCON-2000

Phalcon 2000Our special-purpose signal-processor is at the heart of the Phalcon-2000 Racon, an important all-weather aid to marine navigation, providing a strong, identifiable and appropriate response to ship’s radars for safe and efficient navigation 24 hours a day.

The signal-processor measures the amplitude, frequency and pulse width of incoming signals. If the signal is accepted as a genuine radar transmission from a ship, the high-speed logic circuits will re-tune the transmitter to the incoming signal frequency (frequency agile) and trigger the coded response. All this processing is performed in less than 500 nanoseconds. If the radar transmission is identified as a sidelobe (same frequency but much lower amplitude), the dual-token sidelobe suppression circuitry inhibits the response to prevent clutter on the ship’s radar.



PM6000

PM6000Power quality and harmonics logger

Superceded by the PM7000, the PowerMaster 6000 offered everything needed to monitor and record power for surveys and audits.

HA5000

HA500Harmonic Analyzer

Superceded by the Power Master Series, the HA500 simultaneously recorded power quality parameters in the same instrument in all weather conditions. It allowed you to view real time data, captured waveforms and trend data on site or off.

RANGER3

Ranger3Data Logger

The Ranger3 Data Logger was a powerful all-purpose recording, analyzing and reporting system. The Ranger3 allowed up to 8 inputs – any combination of the single and dual plug-in modules: DC Voltage/Current, 4-20mA, Dual Analog DC Voltage and Current, AC Voltage and Current, Dual Analog AC Voltage and Current, Pulse Counting, Temperature/Thermocouple, Temperature/RTD, Temperature/Thermistor, Dual Analog Temperature, RH and Event.

Scout

ScoutData Logger

The Scout Data Logger was a compact, economical, paperless recorder with dedicated inputs. It incorporated many of the features and design parameters of the Ranger III & IV Data Loggers. Ranger’s Adaptive Storage technique made this little data logger far more accurate than much more expensive instruments.

THE Ranger STORY  (so far!)

Ranger data loggers began life in Southern England 22 years ago.  A small, handheld, 4 channel, data logger, was licensed to Gulton Inc of Rhode Island, owners of the Rustrak paper chart recorders.  The name Ranger (from the much loved character, The Lone Ranger) was chosen for the logger and the accompanying software was called Pronto (nearly the same as Tonto, the Lone Ranger’s trusty Indian companion).  Early advertisements encouraged customers to buy by declaring, “save a lot of silver too.”  (The Lone Ranger’s horse was Silver).

The (Rustrak) Ranger 1 was one of the first electronic, graphing, logging devices and replaced the paper chart recorders which recorded temperature primarily, but also 4-20 mA and 0-2 Volts.  Much thought went into the design of the user interface, culminating in a very simple, two button, selection operation. The DOS based software Pronto managed the data and was appreciated by customers for its ease of use, clarity and reliability (no bugs!).  A Hercules Graphics card enabled the computer to show the Pronto graphs on screen.

A unique feature of the firmware in the logger, incorporated from the start, was the patented Adaptive Store storage technique.  Customers haven’t always understood how it works but even then they enjoyed the relatively detailed results they saw on their Pronto graphs and in their reports.

After Ranger 1 came Ranger 2, retaining the same essence as this first Ranger.  In addition it had more channels, a memory card and was very versatile, offering a range of pods for different applications.

Gradually power quality measurement capability appeared and indeed started to take over.  The 1200 series measured power parameters.  It soon became clear that this was a market on which Outramshould concentrate as it requires a high level of expertise.  The Ranger 1 technical team thrive on difficult challenges.

The first instrument dedicated to power quality measurement was the Power Logger, then came the Harmonic Analyser the HA5000 and finally, still under licence, the PM6000.  Adaptive Store delighted customers with the increasing detail it provided as its techniques and the instruments evolved.  Pronto became Pronto for Windows.

However all was not ‘easy riding’ for Rangers and their customers as the product line was transferred between companies and geographic locations a number of times and joint development ventures came under a licencee axe.

In 2003 Outram Research Ltd (ORL), the Ranger 1 design house, negotiated back the sole rights to the Intellectual Property for the brand and is now able to focus fully on Ranger’sdestiny.  The culmination of its years of experience in the data logger market is a state of the art, extended family of Ranger Power Quality Analysers, as described on this site.
