Power Quality Analysers

With the wide ranging requirements of our customers from energy audits, to electrical fault finding, power quality troubleshooting, long term data logging, Harmonic Standards compliance, Dynamic Containment provision and prospective fault level measurement to name just a few(!), Outram provide a wide-ranging selection of power quality analysers to match those needs.

We have various options available from single phase energy loggers to 3 phase, comprehensive power quality analysers which can be loaded with extra features such as enhanced G5/5 Harmonics, Fast Frequency and Fault Level measurement. Knowing which one would be the best for your needs might not immediately be obvious so we’ve put together a chart to help.

Either scroll down to your critical measurement parameters and see which models can measure them or pick an analyser along the top and scroll down to see if it fulfils all your requirements. If in doubt, don’t hesitate to give us a call or an email. All details can be found on our contact us page. We’ll be happy to talk you through the different options and find the best unit for your needs.

Comparison Chart

Read Our Reviews

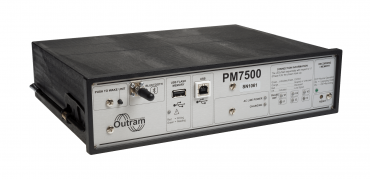

[PM7503] Power Quality Analyser

PM7500

GET A QUOTE
[PM7000] Power Quality Analyser

PM7000

GET A QUOTE
[PM4000] Power Quality Analyser

PM4000

GET A QUOTE
[PM3000] Power Quality Analyser

PM3000

GET A QUOTE
[PM2000] Power Quality Analyser

PM2000

GET A QUOTE

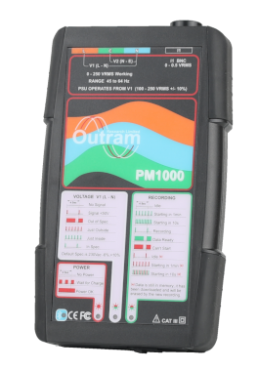

[PM1000] Power Quality Analyser

PM1000

GET A QUOTE

No. Voltage Channels

4 4 4 3 3 1

Voltage Range AC

0-600Vrms or 0-1000Vrms (L-L and L-N). 0-848Vpk or 0-1414Vpk Transient voltages up to 4000V 0-600Vrms or 0-1000Vrms (L-L and L-N). 0-848Vpk or 0-1414Vpk Transient voltages up to 4000V 0-600Vrms or 0-1000Vrms (L-L and L-N). 0-848Vpk or 0-1414Vpk Transient voltages up to 4000V 0-480Vrms or 0-600Vrms 0-678Vpk or 0-848Vpk 0-300Vrms 0-424Vpk 0-270 Vrms 0-381Vpk

Voltage Range DC

0-600Vdc 0-480Vdc

No. Current Channels

4 4 4 3 2 1

Current Range AC

Typical 0-1V RMS. Current to Voltage CTs supplied, nominal input 1A (5A or 10A on special request) 0-400.0A or 0-6000A 0-400.0A or 0-6000A 0-50.00A, 0-400.0A or 0-3000A 0-200A or 0-300A 0-50.00A or 0-1000A

Current Range DC

Variable with relevant current clamps Variable with relevant current clamps

Ability to Measure Neutral

Differential Voltage Channels

Detailed Recording Channels

32 32 32 16 16 16

General Parameters

DC Measurement

Optional

Fault Level

Optional Optional

Flicker (Plt, Pst, Pinst, Pflag)

Highest order of individual harmonics

50th (127th Optional) 50th (127th Optional) 50th (127th Optional) 15th 15th 15th

Interharmonics

Optional Optional

Enhanced Harmonics to 100th for G5/5 Measurement

THD and THC

kW

KVA

KVAR

Power Factor

Unbalance (V & I)

Frequency 45-65Hz (Can automatically detect 50 or 60Hz nominal)

Fast Frequency Measurement to 0.001Hz resolution

InRush Current

K Factor

Symmetrical Components

Single Cycle Adaptive Store

Data logging time interval single cycle to 12hrs or Auto-variable with Adaptive Store

Sag / Swell / Outage Monitoring

High Speed Waveforms with AutoRanking Waveform Capture

Yes at 19.2k Samples/sec Yes at 19.2k, 153.6k, 1.2M Samples/sec Yes at 19.2k Samples/sec

Transient detection

Yes both cycle & sub cycle Yes both cycle & sub cycle Yes both cycle & sub cycle Yes down to single cycle Yes down to single cycle Yes down to single cycle

CBEMA / ANSI / ITIC curve plots

Onboard Display

Live Results

Using PMMeter PMWave or PMScreen Using PMMeter PMWave or PMScreen Using PMMeter PMWave or PMScreen Using PMMeter PMWave or PMScreen Using PMMeter or PMScreen Using PMMeter or PMScreen

Bluetooth

Optional

Ethernet

Optional Optional

USB or Infra-Red Communication

USB USB USB USB Infra-Red USB-C

Remote screen with PMScreen

Optional with Bluetooth

Remote Communications via PMGateway

Optional with Bluetooth

Time Synchronisation over mobile phone or PC

Memory storage for recorded data

128MB 128MB 32MB 8MB (16MB & 32MB Optional) 1MB 8MB (16MB & 32MB Optional)

Expandable Memory with a memory Stick or Hard Drive

Fifo mode

Self Powered (powered from Phase A)

Can be charged from the mains if necessary (12V DC charger unless otherwise specified)

Power Lead

Portable/Fixed

F P P P F P

Operating Temperature

-20 to 60°C -20 to 60°C -20 to 60°C -10 to 60°C -30 to 65°C -10 to 60°C

Safety Rating

600V CatIV 600V CatIV, 1000V Cat III (Fuses removed) 600V CatIV, 1000V Cat III (Fuses removed) 600V Cat III 300V Cat III 300V Cat III

IP Rating

IP40 IP65 IP65 IP51 Not applicable IP40

Software

Pronto for Windows Pronto for Windows Pronto for Windows Pronto for Windows Pronto for Windows Pronto for Windows
