PM7000 Power Quality Analyser

Power Quality Monitoring Equipment

Outram Research Ltd manufacture and sell a wide range of Power Quality Monitoring Equipment.

Find out more about our Power Quality Monitors:

Speak to our team

Outram Research Ltd manufacture, sell and hire a wide range of Power Quality Monitoring Equipment. From a single phase, plug and play instrument for solving residential Power Quality complaints to comprehensive 3 phase, 8 channel, high speed troubleshooting technology used by Power Quality Consultants, Distribution Network Operators and Electrical Utility Companies around the world.

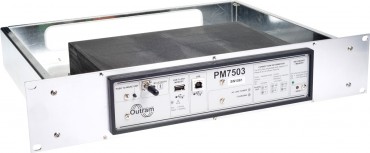

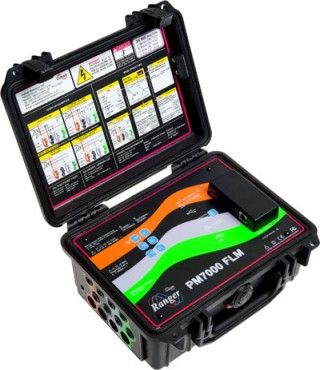

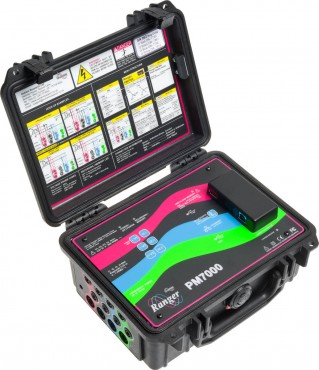

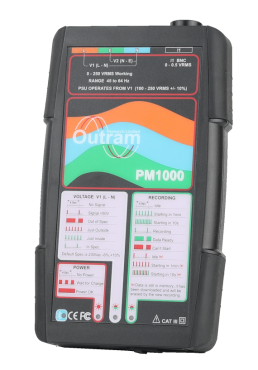

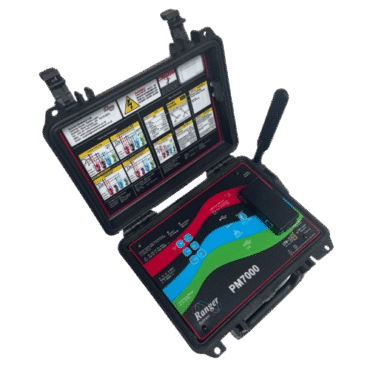

Packed with unique attributes our Power Quality Monitors, which include the PM1000FB, PM2000FB, PM2000-300FB, PM3000HF, PM7000TI, PM7503 and PM7000 FLM, are easy to use, reliable, comprehensive and fully supported.

Easy To Use

  • Kit is robust and easy to carry in a single bag
  • Hook-up checklist with photos to help set up
  • No thresholds to set
  • Easy re-loading of the same configurations as a previous job from saved recordings
  • Up to 10m remote screen capabilities to check recording using tablet/mobile phone even through electrical enclosures
  • Change round CT polarity using the app on your hand held device (Android tablet or mobile phone)
  • Powered from measured voltage input (or from mains charger)
  • CT’s don’t require any power supply
  • No dongle needed for the software
  • Wide temperature range covered
  • Ready to use configurations pre-loaded into the logger memory





Reliable Recordings

  • Restarts automatically after an outage
  • Use FIFO mode for longer recordings – unlimited memory when used with any sized memory stick or PMGateway
  • IP65 – weather proof
  • ORL get very few back for repair

Comprehensive Data Capture

  • All measurement eventualities covered:
  • 3 Simultaneous recording regimes available:
    • Single Cycle Adaptive Store – no thresholds (Entire range)
    • Auto Ranking, High Speed, Waveform Capture (PM7000S, H, T, PM7503 and PM7000 FLM only)
    • General Parameters (>470 channels) (PM7000S, H, T, PM7503 and PM7000 FLM only)
  • Inter-harmonics & Individual Harmonics to the 127th (PM7000, PM7503 and PM7000 FLM only)
  • Flicker to EN 61000-4-15
  • Bluetooth, Ethernet, USB, USB connectivity
  • Unique Power Quality Software, Pronto for Windows included in the price of each unit. (Entire Range)

Fully supported

  • Unlimited telephone support, even on site
  • Supported in the UK by knowledgeable engineers who designed the units, not from a call center. Local distributors support in USA, Canada, Australia, New Zealand and Holland.
  • Free training at your site with the purchase of a PM7000 (ORL visit UK sites and potentially local European sites)
  • Upgrades for our Power Quality Software, Pronto for Windows, are available on the internet free of charge.

Outram Research Ltd monitors are used right across the US, UK and Australia by some of the biggest electrical utilities in the world. If you would like to see references and testimonials from some of our customers please don’t hesitate to get in touch.

Contact us today and we’ll help you choose the right power quality monitoring equipment for your needs.



Speak to us Today

+44 (0) 1243 573050



Callback

Make an Enquiry

Quick Contact
Fault Level Monitors to Validate ENWL RESPOND Project Network models

Fault level monitors – Outram fault level monitors have been installed at seven [Electricity North West] Respond [Project] sites. These monitors will validate our network model and the Fault Level Assessment Tool. Electricity North West Ltd RESPOND Project Newsletter, May 2016.

Electricity North West Ltd RESPOND Project Newsletter, May 2016.
It’s shown me just how much time your software is going to save me!

What you showed me this morning and what I’ve been doing this afternoon has shown me just how much time your software is going to save me!

Bob King, Power Phase Services, UK (Contracting for Network Rail)
I have used data loggers in the past… Not in the same league as the Outram equipment

Thank you for all your fantastic efforts yesterday.

I have used data loggers in the past but they were not in the same league as the Outram equipment.

Last December when Network Rail asked me to install PQ monitoring I looked at hiring a couple of [competitor] PQ monitors. I had a Network Rail Graduate alongside me and I thought it would be a good learning exercise for him. As I began to understand the railway electrification system I realised [these] were a non-starter, so when the local electricity board ‘turned the screw’ I decided to look deeper.

I discovered Outram and when I read about your collaboration with Scottish Power I immediately realised the Outram equipment was the only one to consider. From what I have seen since yesterday morning I know I was correct in contacting your company.

Bob King, Power Phase Services, UK (Contracting for Network Rail)
Outram PM7000FLM proved capable of reliably assessing Fault Level

The Outram PM7000FLM and associated software proved to be capable of reliably assessing / calculating fault level from both repeated low-level steps, as well as one-off larger pulses.

Rob Weller, Rina Consulting, UK Power Networks Earth Fault Level Project, March 2018
I have been quite astounded at the detail the Outram Data Logger has captured.

During communications regarding the 3 PM7000TIs that Bob is managing remotely, with new data sent back to him over email every 24 hrs, he told us that he has been finding detail in the recordings he never thought he would see. “I have been quite astounded at the detail the Outram Data Logger has captured.”

Bob King, Power Phase Services, UK
The Outram PM7000FLM … software made analysis of fault-current straightforward

We found the Outram PM7000FLM useful for capturing data, and its software made analysis of fault-current straightforward. Other methods of data capture can be used, but would require further development to accurately give fault level information; the area where the FLM scores is its ease of use, and also that statistical analysis is applied over the whole test period, rather than at a ‘snapshot’ of one event as our analysis. This makes it less prone to noise and other disturbances on the system.

Rob Weller, Rina Consulting, UK Power Networks Earth Fault Level Project, March 2018
…calculation of fault level trivial in comparison to the ‘manual’ methods

The Outram equipment (and associated software) makes calculation of fault level trivial in comparison to the ‘manual’ methods.

Rob Weller, Rina Consulting, UK Power Networks Earth Fault Level Project
That’s a hell of a piece of Kit!

That’s a hell of a piece of Kit!

Now I’ve seen what it can do I’m going to mention it to another customer here in the UK who I know is having trouble.”

Rob Rose, Simpson and Wood, UK Feb 2019
Bluetooth functionality with PMScreen and real time monitoring is sensational.

Thank you so much for attending to [my support query], and so quickly! Very impressed with these [PM3000] power analysers and the Bluetooth functionality with PMScreen and real time monitoring is sensational.

Euan Galbally, Operations Project Engineer - Supply Restoration, SSE.
The analyser did everything that we needed. We were also impressed with how quickly it got across the US.

The analyser did everything that we needed. Rob was surprised at how easily it went on.

We were also impressed with how quickly it got across the US. It was there before we even left [the UK] and we didn’t expect that to happen.

It’s a specialised subject and the support we received from Duncan was second to none.

Chris Brookes, Simpson and Wood, UK Feb 2019
….Commendable for its ease of use and portability

The Outram equipment is commendable for its ease of use and portability.

Rob Weller, Rina Consulting, UK Power Networks Earth Fault Level Project

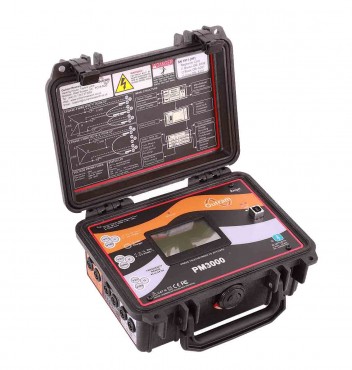

…PM3000 is the best product in my shop

The reason I think your PM3000 is the best product in my shop is the reliability and the software. I use 5 different brands of recorders and this one by far has been the most reliable. The software updates are great, with the 60 day reminders. The layout of the software and every single function make it simple and user friendly unlike most products.

Greg Ellis, Electrical District #3, Arizona USA, 2014
Your kit knocks spots of the bigger manufacturers

Your kit knocks spots of the bigger manufacturers.

Andrew Williams, MD, Smart Electrical Systems, Sept 2018
