APPNOTE: How to use the ‘Examine’ Function in Pronto

Article ID: 140820kae
Last Reviewed: July 10, 2023

The information in this article applies to:

  • All Ranger Power Master Analyser Users

Target Audience

This article is aimed at:

  • Those using the Classic version of Pronto for Windows software (images are taken using Pronto 5.73).


This application note details the sequence advised to use the ‘Examine’ function in Pronto for Windows.

Before you start

  1. Make sure you are using the Classic version of Pronto. Those using version 6.X can use the context sensitive Help given in that version of Pronto or read the Pronto Quick Reference Guide if available.
  2. Create a graph of the data streams you would like to examine.

To use the Examine function in classic Pronto for Windows

Click on the trace you would like to ‘Examine’.  Then select the ‘Examine’ menu at the top of your screen.

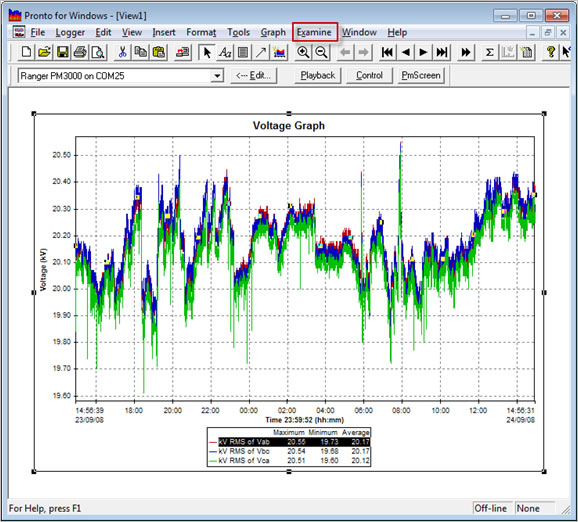

Pronto Software Voltage Graph

You will be given the following options:

Pronto Software Examine Menu

Single Cursor

To start with select ‘Single Cursor’. You will now see a couple of dotted lines crossed on the graph.

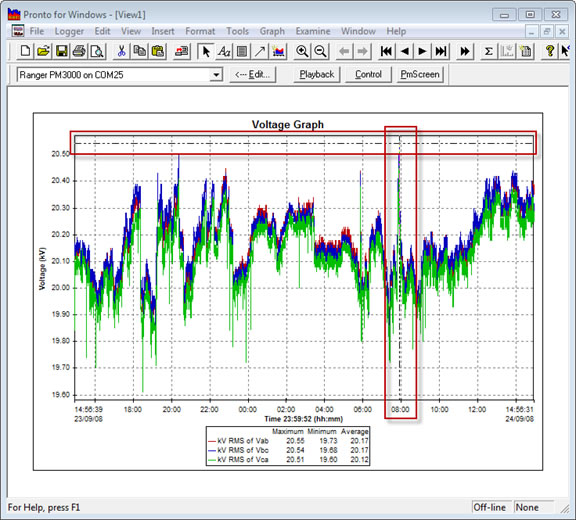

Pronto Software Voltage Graph with Examine cursors - Single Cursor

And the following assistant will have opened.

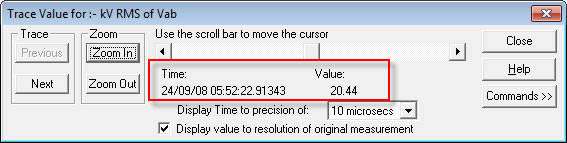

Pronto Software Examine Dialogue 1

Use the Scroll bar to move the cursor (where the two dotted lines meet) along the trace (data stream) you have previously chosen.  You can either watch the time and the value below the scroll bar as you scroll the cursor along the trace or you can take a note of the value when you have reached a particular point on the graph that you are interested in.  If you would like to zoom in and out of the graph while you are in this Examine mode, click on the ‘Zoom In’ or ‘Zoom Out’ buttons on the assistant.

Pronto Software Voltage Graph with Examine Cursors 2

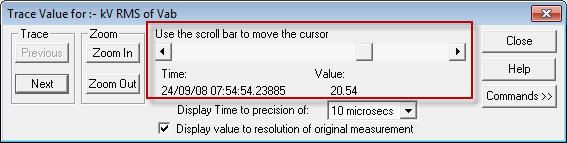

Pronto Software Examine Dialogue 2

Likewise if you would like to move to a different trace on the graph, i.e. RMS of Vbc, then click on ‘Next’ Trace.

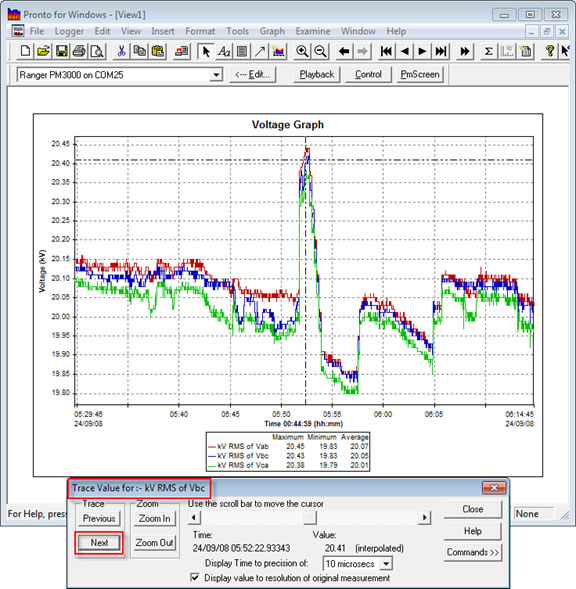

Pronto Software Examine Cursors 3


To insert the time and value that you have ‘found’ into the graph as a label or to add an annotation to the graph, click on ‘Commands>>’.

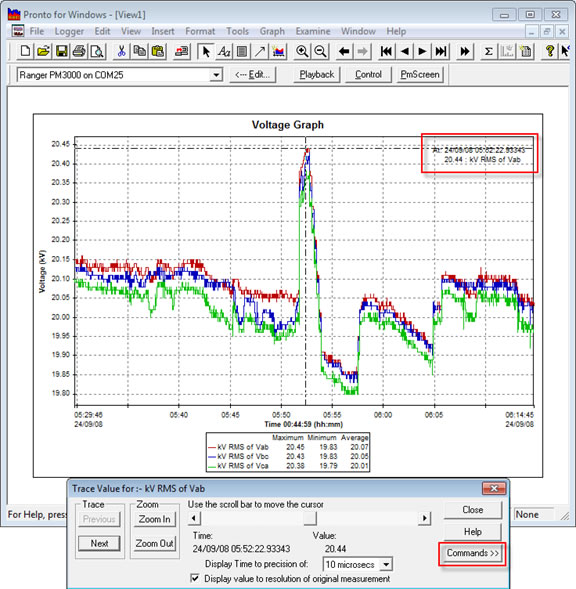

Pronto Software Examine Cursors 4
You will be offered the following options:

Pronto Software Commands Menu

If you ‘Insert time and value’, a label like the one in the graph above will be inserted, but if you select ‘Insert Annotation’, the annotation assistant opens up for you to write your own text.

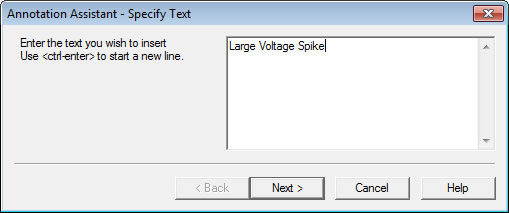

Pronto Software Annotation Assistant 1
Click on ‘Next’ once you have written your own text and choose whether to save the annotation in the project or just use it on this graph.  If you save the annotation to the project you can refer back to it specifically at a later time.  Click on ‘Finish’ to exit the assistant and see the annotation on your graph.

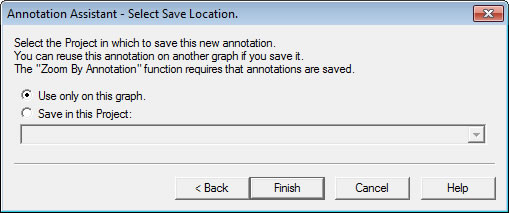

Pronto Software Annotation Assistant 2

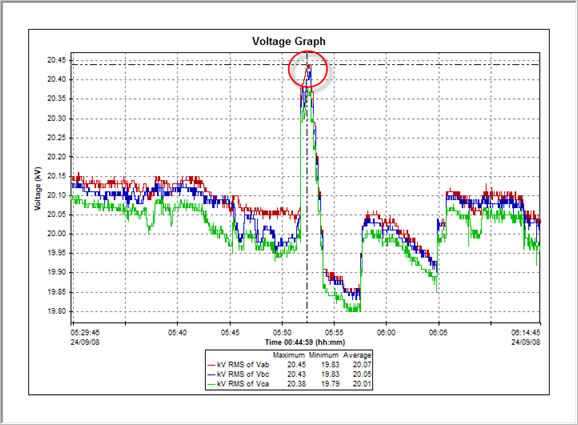

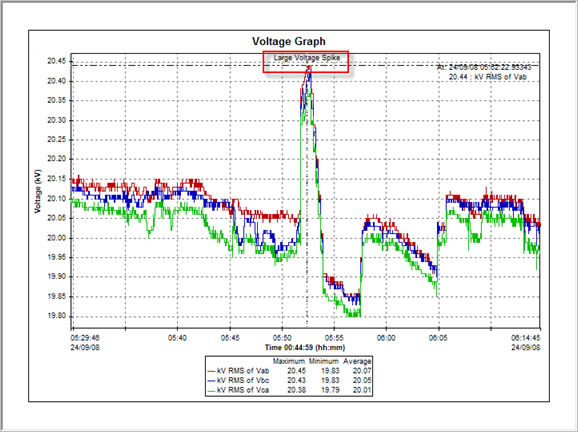

Pronto Software Graph with Annotation

When you have finished click on ‘Close’.

You can carry out basic formatting on the annotation by double clicking on it once you have closed the ‘Examine’ dialogue box.

Dual Cursors

To use two cursors on the same trace, go back to the ‘Examine’ menu and choose ‘Dual Cursors’.  This then offers you the chance to compare two cursors, e.g. to distinguish the exact length of a voltage spike or the exact size of the spike.

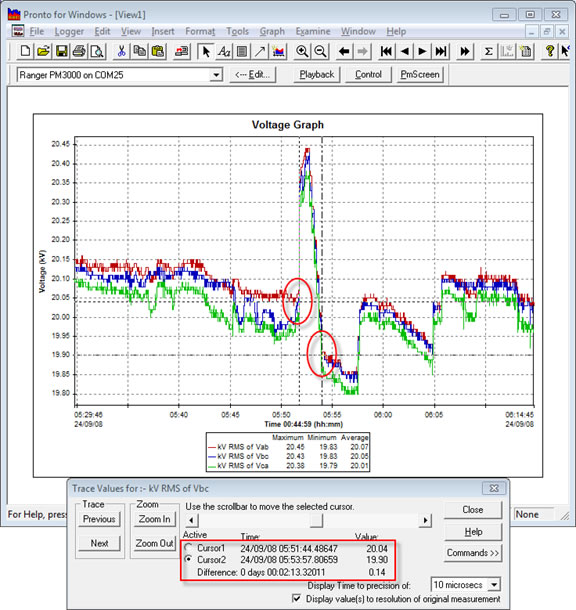

Pronto Software Examine Function - Dual Cursors

To switch between the two cursors to move them, click in the circles to the left of ‘Cursor1’ and ‘Cursor2’.  Once in place you can read the times and values and the difference between the two.  The time duration of this spike (i.e. between the two cursors) was 2 minutes, 13 seconds etc. and the difference between the heights on the two cursors is 0.14kV.

Again it is possible to move the cursors on to a difference trace and to zoom in and out of the graph whilst using this assistant.  You can also add annotations and insert time and values as you did before with the single cursor, only now you are given more fairly self-explanatory options:

Pronto Software Annotations Menu - Dual Cursors

If you choose ‘Insert time and all values differences’ this is the kind of information you might get in this situation.

Pronto Software Annotation Example Dual Cursor

Trace Level

You can also select ‘Trace Level’ in the ‘Examine’ drop down menu.  This gives you the option of setting a threshold value on the graph to measure against.

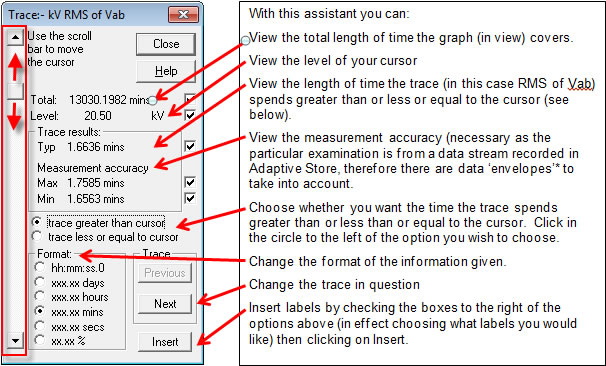

The following Trace assistant opens with a scroll bar down the left hand side.  This is used to set the cursor along the length of the graph.

Pronto Software Examine Function Trace Level

*Data Envelopes are those areas where you are given a max and min envelope for the particular reading.  The difference between the max and the min readings on the ‘measurement accuracy’ take into account those cumulative max and min values where the trace crosses the cursor level you have chosen to use in this examination.

Below I have set a cursor value of 20.5kW, selected ‘trace greater than cursor’ and labelled the results of each trace on the graph.

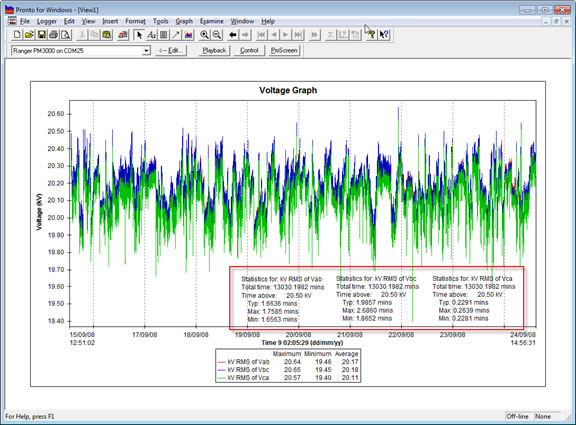

Pronto Software Voltage Graph with Trace Level Annotations
This graph can then be copied and pasted into a Word Document report.
