Power Quality Monitor Hire

PM7000Turbo (1.228MHz sampling rate)

Hire Today

Get to the bottom of your power quality problem faster and more economically with around 500 channels of simultaneously recorded parameters. You can select up to 32 of those data streams to be recorded down to single cycle detail when something interesting happens using our Adaptive Store recording regime. No thresholds are needed, so there is no guesswork involved when setting up the unit in search of the data you require to solve your problem. Don’t know what you need? We even have 12 preloaded configurations you can choose from using our configuration guide included in the kit.

When using this Turbo speed model, waveforms are captured to 1.228MHz, set off by 7 different trigger types using auto-ranking waveform capture.

At the same time all useful PQ parameters are also measured to a set interval (1sec to 12 hrs), automatically, such as:

• Apparent Power
• Real Power
• Reactive Power
• Power Factor
• Unbalance (to P29)
• Flicker (Pst and Plt)
• THD (THDv)
• TH Current (THDi)
• Harmonics to the 50th
• and much more.

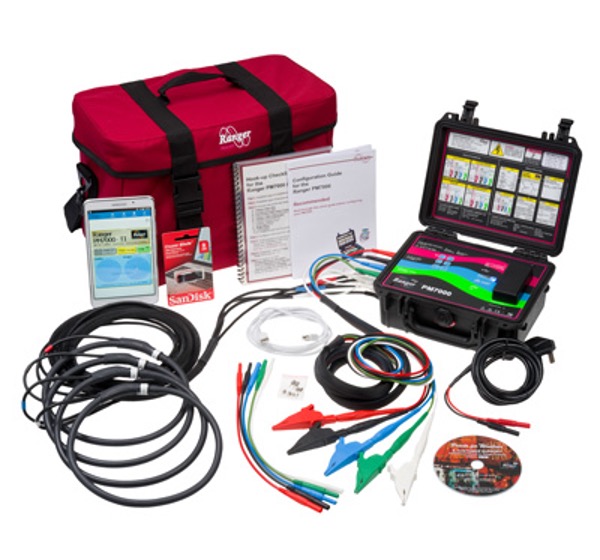

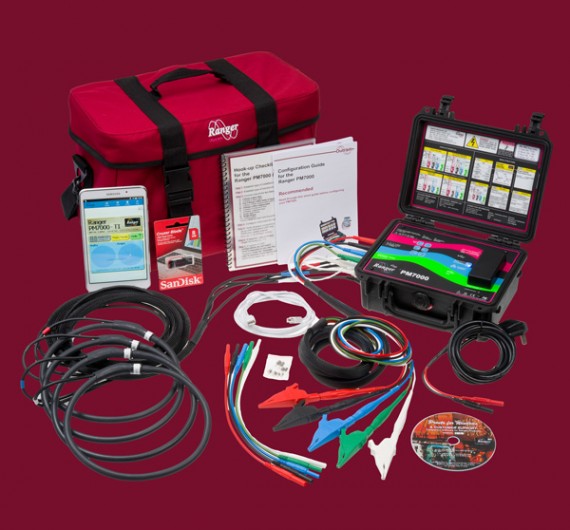

The unit also comes with:

• USB Flash Drive connectivity, giving almost unlimited memory availability
• 4 colour coded Rogowski Coils, no batteries required
• 3 0-10A or 0-1 A/0-100A selectable Low Current CTs for connection to secondary CTs (optional)
• Pronto for Windows software, a highly regarded data recovery and analysis package
• PMScreen, the PM7000 user interface presented on an Android Tablet included in the hire kit, connected over Bluetooth.
• Bluetooth, Ethernet, USB connections

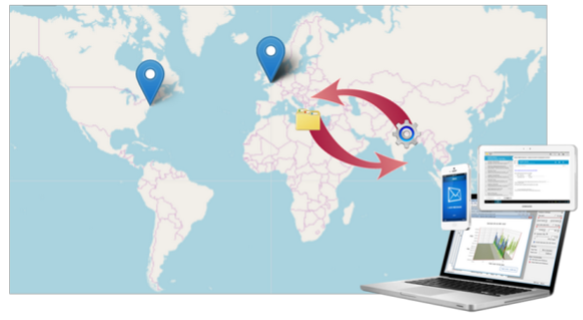

• Optional remote communications with PMGateway

We have done our best to ensure each and every hire is successful for our customers. We can configure the units for you before we send them out and we have on site Hook-up guides with photos to guide you when making your connections. You don’t need batteries for your CTs or dongles for the software and the unit charges from Phase A voltage input with an auto re-start on the recording if the power goes down (as well as a 10 minute ride through).

Click here for more information on our PM7000 or download the datasheet. If you’re not sure if the PM7000 is the right unit for you, give us a call, and we can discuss how best to measure what you need and which will be the right power quality analyser for the job.

Hire Today

PM7000 with Enhanced harmonics to the 100th (G5/5)

Hire Today

Measure to ENA Recommendation G5/5 with our Cat IV 600V PM7000 with Enhanced harmonics to the 100th. Record the complete data set (and more) for Surveys to ENA Recommendation G5/5 including:

• Voltage & current harmonics to 100^th harmonic
• Voltage Sub-Group & Interharmonics to 100^th harmonic
• THDv & THDi to 100^th harmonic
• Waveform capture including Notching (Waveforms measured to PM7000 Standard speed of 19.2kHz)

Example of additional parameters all recorded as standard using our PM7000 range:

• Long Term Flicker (to IEC61000-4-15)
• Short Term Flicker (to IEC61000-4-15)
• Unbalance (to P29)
• Power Factor
• Real Power
• Apparent Power
• Reactive Power
• and many more.

The unit also comes with:

• USB Flash Drive connectivity, giving almost unlimited memory availability
• 4 colour coded Rogowski Coils, no batteries required
• 3 0-10A or 0-1 A/0-100A selectable Low Current CTs for connection to secondary CTs (optional)
• Pronto for Windows software, a highly regarded data recovery and analysis package
• PMScreen, the PM7000 user interface presented on an Android Tablet included in the hire kit, connected over Bluetooth.
• Bluetooth, Ethernet, USB connections
• Optional remote communications with PMGateway

We have done our best to ensure each and every hire is successful for our customers. We can configure the units for you before we send them out where possible and we have on site Hook-up guides with photos to guide you when making your connections. You don’t need batteries for your CTs or dongles for the software and the unit charges from Phase A voltage input with an auto re-start on the recording if the power goes down (as well as a 10 minute ride through).

If you’re unsure about carrying out the measurement yourself, do get in touch. We carry out G5/5 surveys all over the UK and would be very happy to discuss one of our highly qualified engineers coming to site to hook up the unit for you. We can also write the report to ENA Recommendation G5/5 following the measurement if that would be useful. Contact us for an example G5/5 report.

Click here for more information on our PM7000 or download the datasheet. If you’re not sure if the PM7000 is the right unit for you, give us a call, and we can discuss how best to measure what you need and which will be the right power quality analyser for the job.

Hire Today

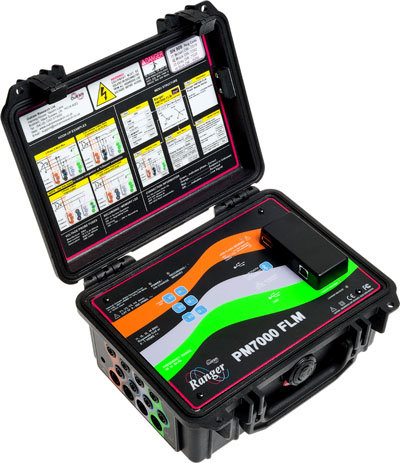

PM7000FLM (Fault Level Monitor)

Hire Today

Measure the Fault Level on your Network as well as all the PQ parameters measured by the PM7000S.

This Cat IV 600V Fault Level Monitor can measure*:

• 1/2 Cycle Peak Upstream Fault Level (Peak Make Fault Level)
• RMS (50-100ms selectable) Upstream Fault Level (RMS Break Fault Level)
• 1/2 Cycle Peak Downstream Fault Level Contribution

As well as Power Quality Parameters such as:

• Long Term Flicker (to IEC61000-4-15)
• Short Term Flicker (to IEC61000-4-15)
• Unbalance (to P29)
• Harmonics to the 50th (to IEC61000-4-7)
• Power Factor
• Real Power
• Apparent Power
• Reactive Power
• and many more.

The unit also comes with:

• USB Flash Drive connectivity, giving almost unlimited memory availability
• 4 colour coded Rogowski Coils, no batteries required
• 3 0-10A or 0-1 A/0-100A selectable Low Current CTs for connection to secondary CTs (optional)
• Pronto for Windows software, a highly regarded data recovery and analysis package
• PMScreen, the PM7000 user interface presented on an Android Tablet included in the hire kit, connected over Bluetooth.
• Bluetooth, Ethernet, USB connections
• Optional remote communications with PMGateway

Waveforms also measured to PM7000 Standard speed of 19.2kHz. View the FLM datasheet here.

We have done our best to ensure each and every hire is successful for our customers. We can configure the units for you before we send them out where possible and we have on site Hook-up guides with photos to guide you when making your connections. You don’t need batteries for your CTs or dongles for the software and the unit charges from Phase A voltage input with an auto re-start on the recording if the power goes down (as well as a 10 minute ride through).

If you’re unsure about carrying out the measurement yourself, do get in touch. We carry out Fault Level surveys all over the world and would be very happy to discuss one of our highly qualified engineers coming to site to hook up the unit for you. We can also write up your Fault Level report following the measurement if that would be useful. Contact us for an example Fault Level Measurement report.

Hire Today

*On a radial or radialised section of the network and with appropriate network disturbances.

PM7000 with High Res Frequency (FFR/ Dynamic Containment)

Hire Today

This Cat IV 600V High Res Frequency PM7000S has an additional, independent, precision frequency measurement on V4 to 0.001Hz resolution suitable for testing Fast Frequency Response and Dynamic Containment provision.

It can also record all the Power Quality Parameters measured by the PM7000S such as:

• Long Term Flicker (to IEC61000-4-15)
• Short Term Flicker (to IEC61000-4-15)
• Unbalance (to P29)
• Harmonics to the 50th (to IEC61000-4-7)
• Power Factor
• Real Power
• Apparent Power
• Reactive Power
• and many more.

The unit also comes with:

• USB Flash Drive connectivity, giving almost unlimited memory availability
• 4 colour coded Rogowski Coils, no batteries required
• 3 0-10A or 0-1 A/0-100A selectable Low Current CTs for connection to secondary CTs (optional)
• Pronto for Windows software, a highly regarded data recovery and analysis package
• PMScreen, the PM7000 user interface presented on an Android Tablet included in the hire kit, connected over Bluetooth.
• Bluetooth, Ethernet, USB connections
• Optional remote communications with PMGateway

Waveforms measured to PM7000 Standard speed of 19.2kHz. Click here for more information on our PM7000 or download the datasheet.

We have done our best to ensure each and every hire is successful for our customers. We can configure the units for you before we send them out where possible and we have on site Hook-up guides with photos to guide you when making your connections. You don’t need batteries for your CTs or dongles for the software and the unit charges from Phase A voltage input with an auto re-start on the recording if the power goes down (as well as a 10 minute ride through).

If you’re unsure about carrying out the measurement yourself, do contacts. We carry out surveys all over the world and would be very happy to discuss one of our highly qualified engineers coming to site to hook up the unit for you. Do you need an Independent Technical Expert to sign off your National Grid provision? We can help with that too. Please get in touch to find out more.

Hire Today

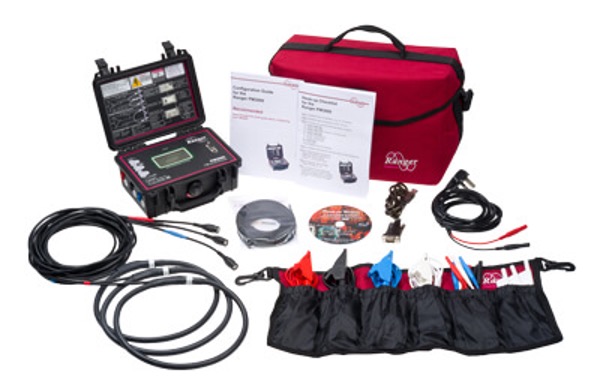

The PM3000HF is your go-to solution for straightforward load monitoring with troubleshooting. With its 16-channel Adaptive Store voltage recording capability, you can capture critical data at single-cycle resolution, ensuring you never miss a crucial event.

Key Features:

• High-Resolution Data Capture: Delve deep into your power system with detailed and accurate measurements at single-cycle resolution.
• Advanced Power Quality Analysis: Assess THD harmonic distortion (up to the 25th harmonic), individual harmonics (up to the 15th), and flicker (including instantaneous sensation) to identify potential issues.
• User-Friendly Interface: Navigate effortlessly through the intuitive touch-screen interface, simplifying setup and operation.
• Reliable and Resilient: Benefit from automatic restart after power outages and continuous monitoring, ensuring uninterrupted data collection.

Ideal for:

• Troubleshooting voltage complaints
• Conducting power quality studies
• Identifying harmonic distortion sources
• Analysing flicker and transient events

Our expert support team is here to guide you every step of the way. We can configure the units for your operation before we send the equipment to you, and have a series of comprehensive guides to help you set up your PM3000HF analyser.

For more complex and detailed load monitoring, we recommend the PM7000 power quality analyser.

Click here for more information on our product range or download the PM3000HF datasheet.

The PM3000DC is widely renowned for comprehensive power system analysis. It combines the advanced features of the PM3000HF with dedicated DC voltage and current measurement capabilities.

Key Features:

• Precise AC and DC Measurements: Capture detailed data on both AC and DC parameters, including voltage, current, power, and harmonics.
• Adaptive Store Recording: Record critical events with single-cycle resolution via 16 Adaptive Store Measurement channels (3-phase measurement), ensuring you have the information you need to troubleshoot effectively.
• User-Friendly: Easily navigate the intuitive touchscreen interface for quick setup and operation.
• Continuous Monitoring: Benefit from automatic restart after power outages and continuous real-time monitoring, ensuring uninterrupted data collection.

Ideal for:

• Analysing battery systems
• Monitoring photovoltaic (PV) systems
• Troubleshooting DC power supplies
• Assessing the impact of DC components on AC power systems

Our dedicated support team is ready to assist you with expert advice and technical assistance.
